Introduction Video
Seamless Payment for Various Scenarios
Retail stores, micro ATMs, banks, restaurants and lotteries.

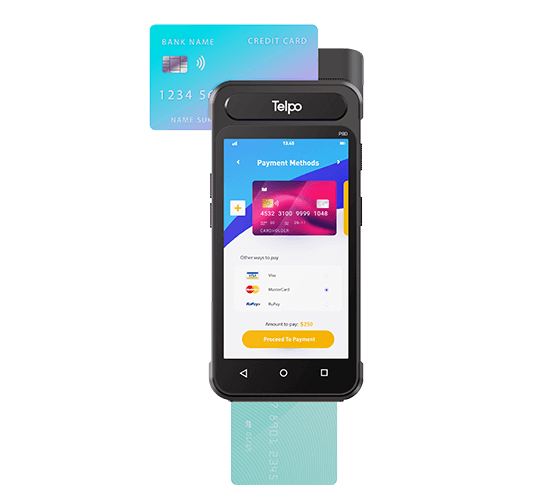

Unlock More Smart Payment Options
Digital Wallet / NFC
Magnetic Stripe Card / Smart Card
QR-code

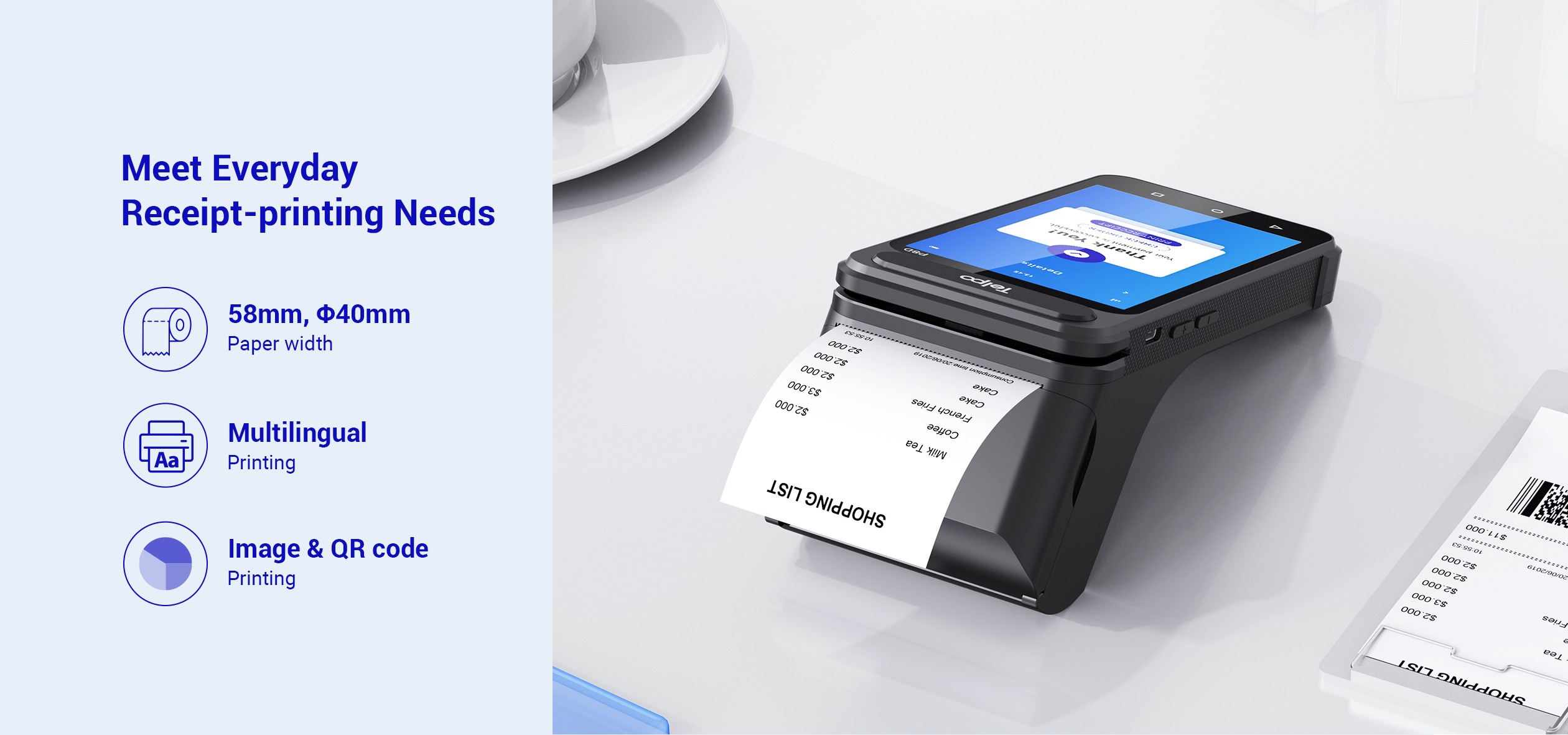

Meet Everyday Receipt-
Printing Needs
Long print head life, maximum print speed 80mm/s.
Meet Everyday
Receipt-Printing Needs
Maximum print speed 80mm/s.
Keep Your Best User
Experience
Uninterrupted
Large-capacity battery for long using time.
· 7.2V/2600mAh, Li-ion
Compact Yet Powerful
Easy hold the device in one hand.
(Based on Android 10)
2GB RAM, 16GB ROM
Full Connections
Telpo Platform Service
Improve your business management efficiency and profits.
Telpo MDM
An efficient platform for terminal management
Telpo OS
The operation system tailored for Telpo users
Telpo APP Store
Provide mass functional apps
Telpo SDK
Efficient cross-platform development solution

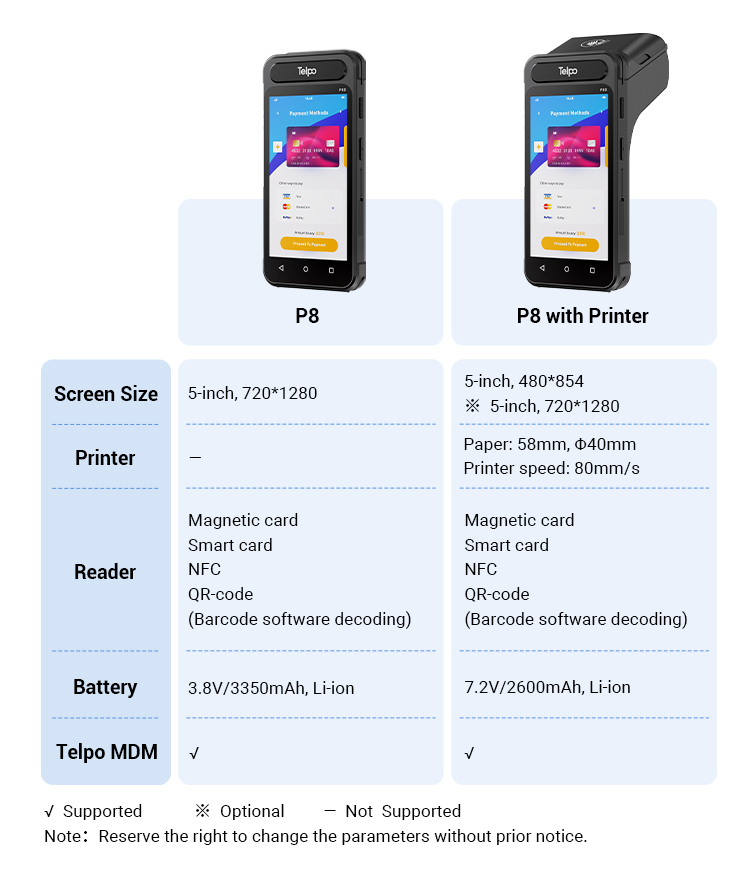

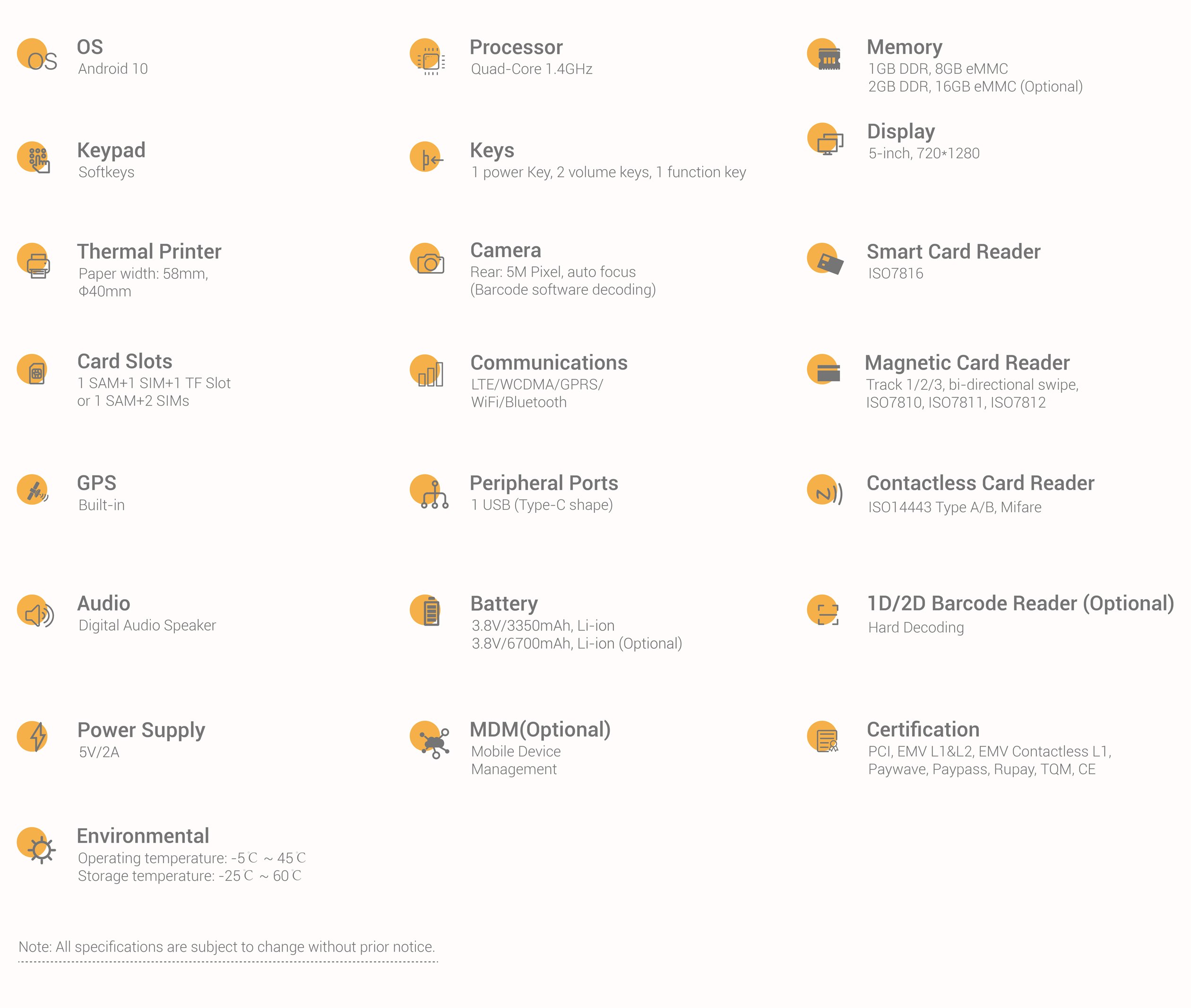

Technical Specifications
OS
Telpo OS
Processor
Quad-Core
Memory
1GB RAM, 8GB ROM
2GB RAM, 16GB ROM (Optional)
TF (Optional)
Display
5", 480*854
5", 720*1280 (Optional)
Thermal Printer
Paper Width: 58mm, 40mm
Key
1 Power Key, 2 Volume Keys
Keypad
Softkeys
Magnetic Card Reader
Track 1/2/3, bi-directional swipe,
IS07810, 1S07811, 1S07812, 1S07813
Smart Card Reader
ISO7816
Contactless Card Reader (Optional)
IS014443 Type A/B, Mitare
Camera
Rear: 2M Pixel, Fixed Focus (Barcode software decoding)
SIM Slots
2 SIMs
1 SIM (Optional)
SAM Slots
1 SAM
Communications
LTE/ WCDMA/ GPRS/ Wi-Fi/ Bluetooth
GPS
Built-in
Audio
Digital Audio Speaker
Peripheral Ports
1 USB (Type-C shape)
Battery
7.2V/2600mAh, Li-ion
Power Supply
5V/2A
Dimensions (mm)
180(L)*78 (W)*75.5 (H)
MDM (Optional)
Mobile Device Management
Environmental
Operating Temperature: -5℃ ~ 45℃
Storage Temperature: -25℃ ~ 60℃
Certification
PCI PTS 6.x, EMV L1&L2, EMV Contactless L1, Paywave, Paypass, Rupay, Pure, Unionpay, TQM, CE, BIS
