Introduction Video
Ultra-Thin
Weights only 6.25kg
Integrated Design
Best for limited space
Delicate
Half less than a traditional self-service terminal
Convenient
Easy & flexible installation

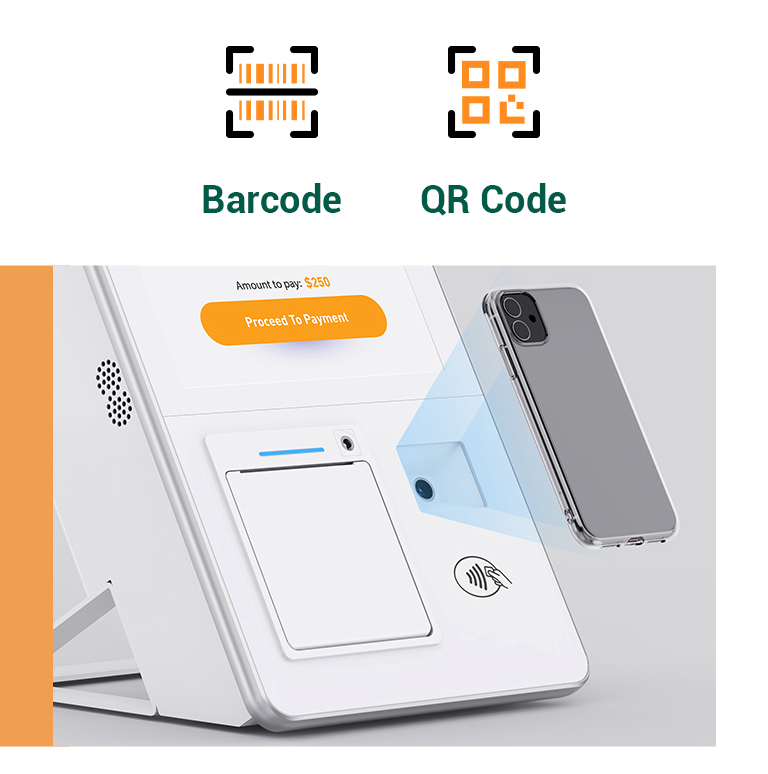

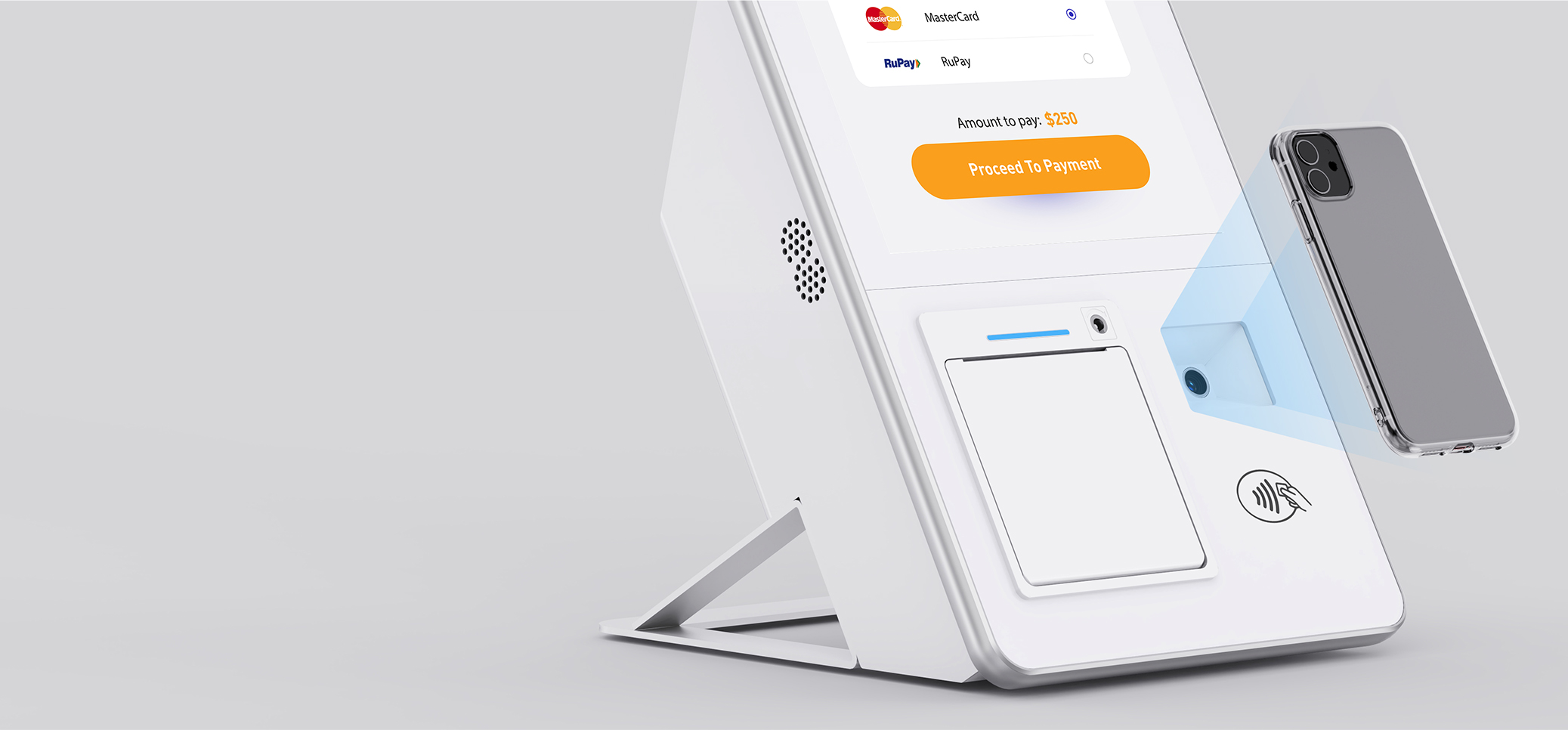

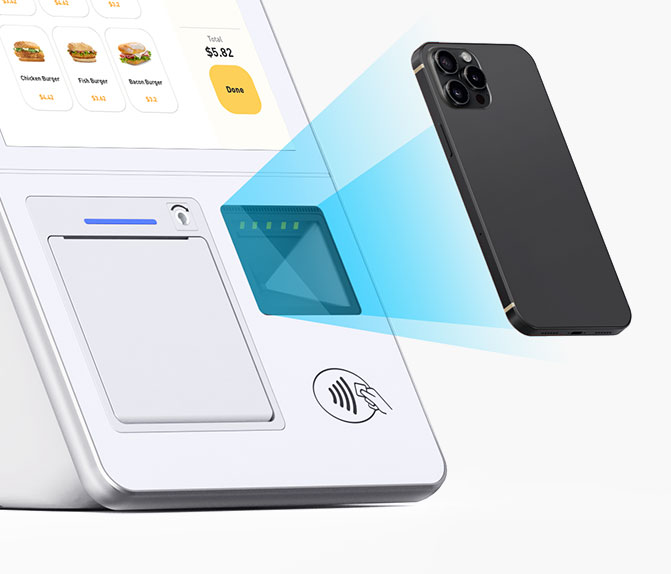

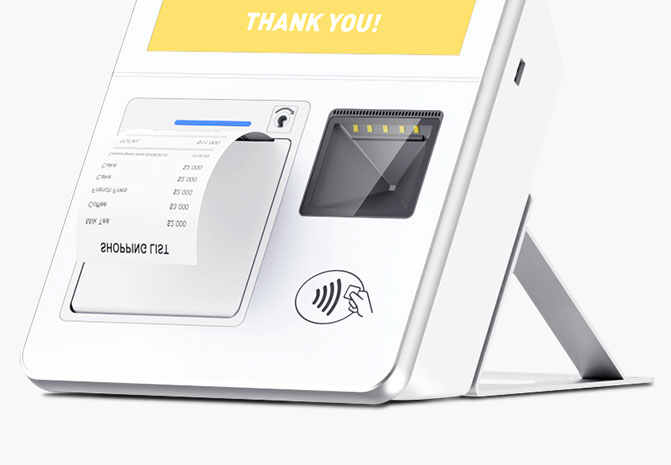

Seamless Self Scanning Experience
The superior built-in self-service scanner can reduce the interference of ambient
light on reading, making contactless QR code payment, and commodity
barcode recognition more quickly and accurately.
Seamless Self Scanning Experience

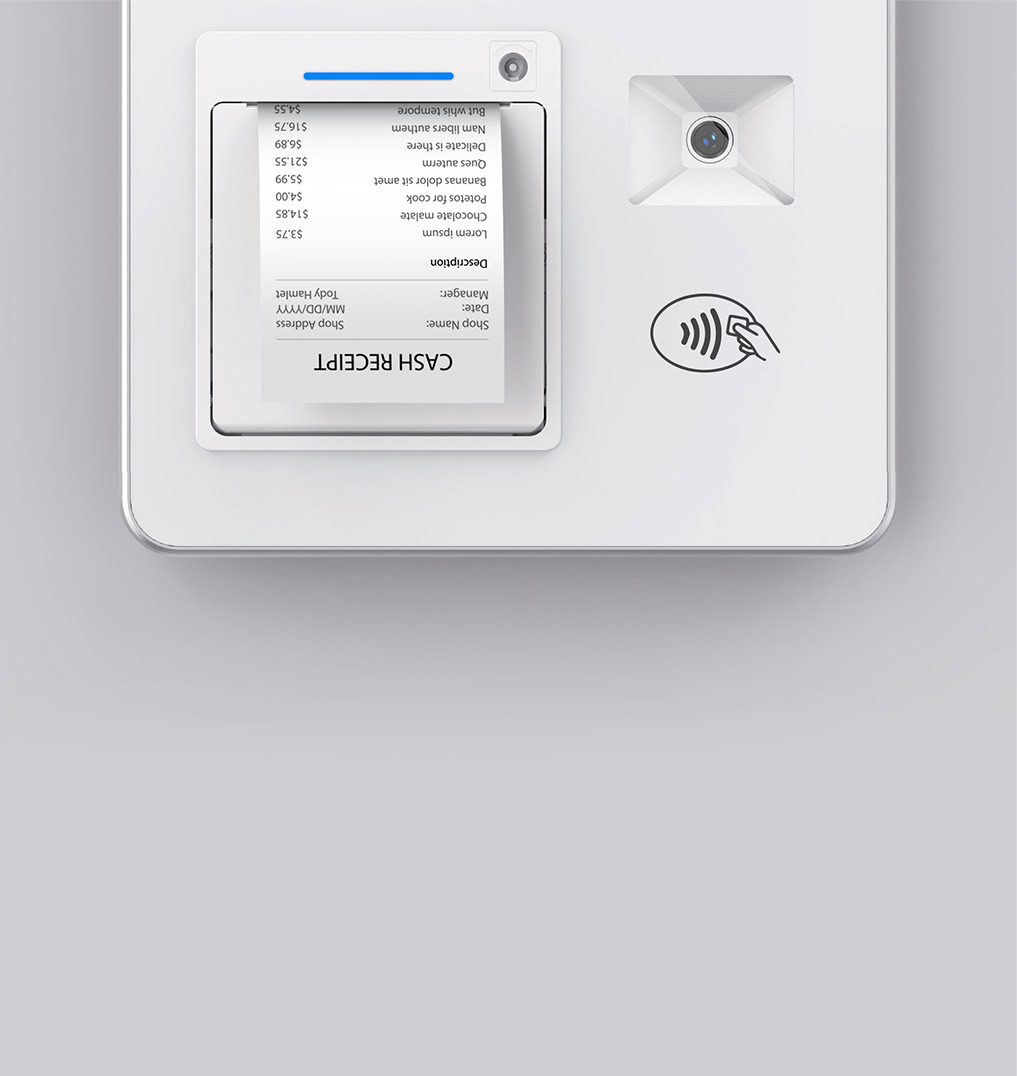

80mm Printer
Max 220mm/s Printing Speed

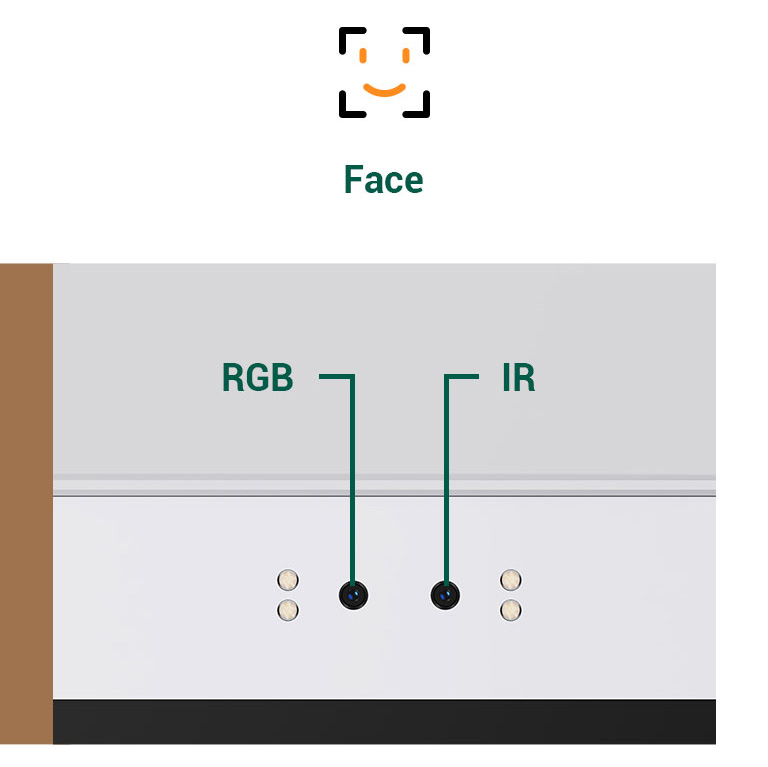

Optional dual-lens camera, meet the needs of face recognition and membership login.
Seamless Membership Access

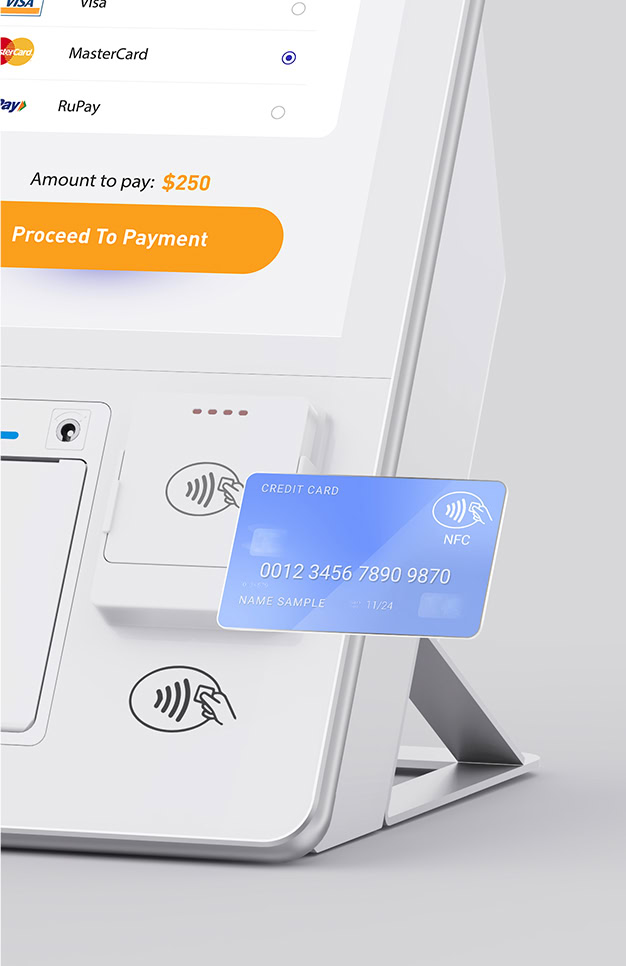

Accept Self-service Payment
Accept All Major
Payments

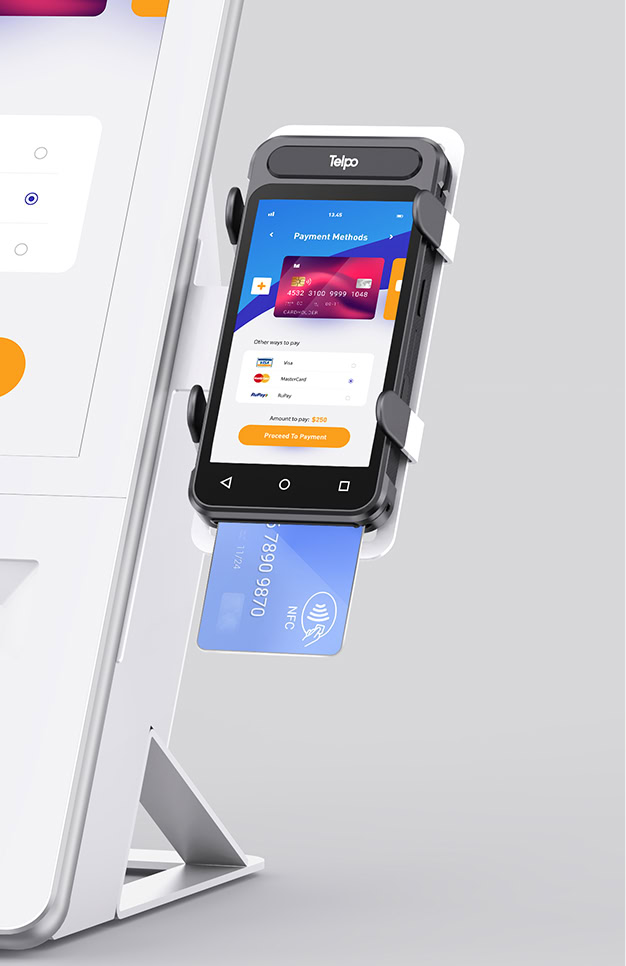

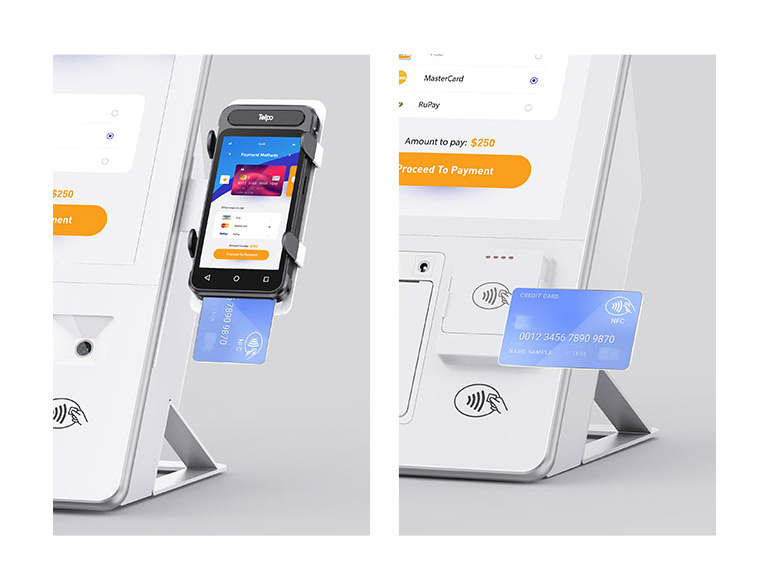

It supports optional versatile POS machine stands and branded card payment modules.

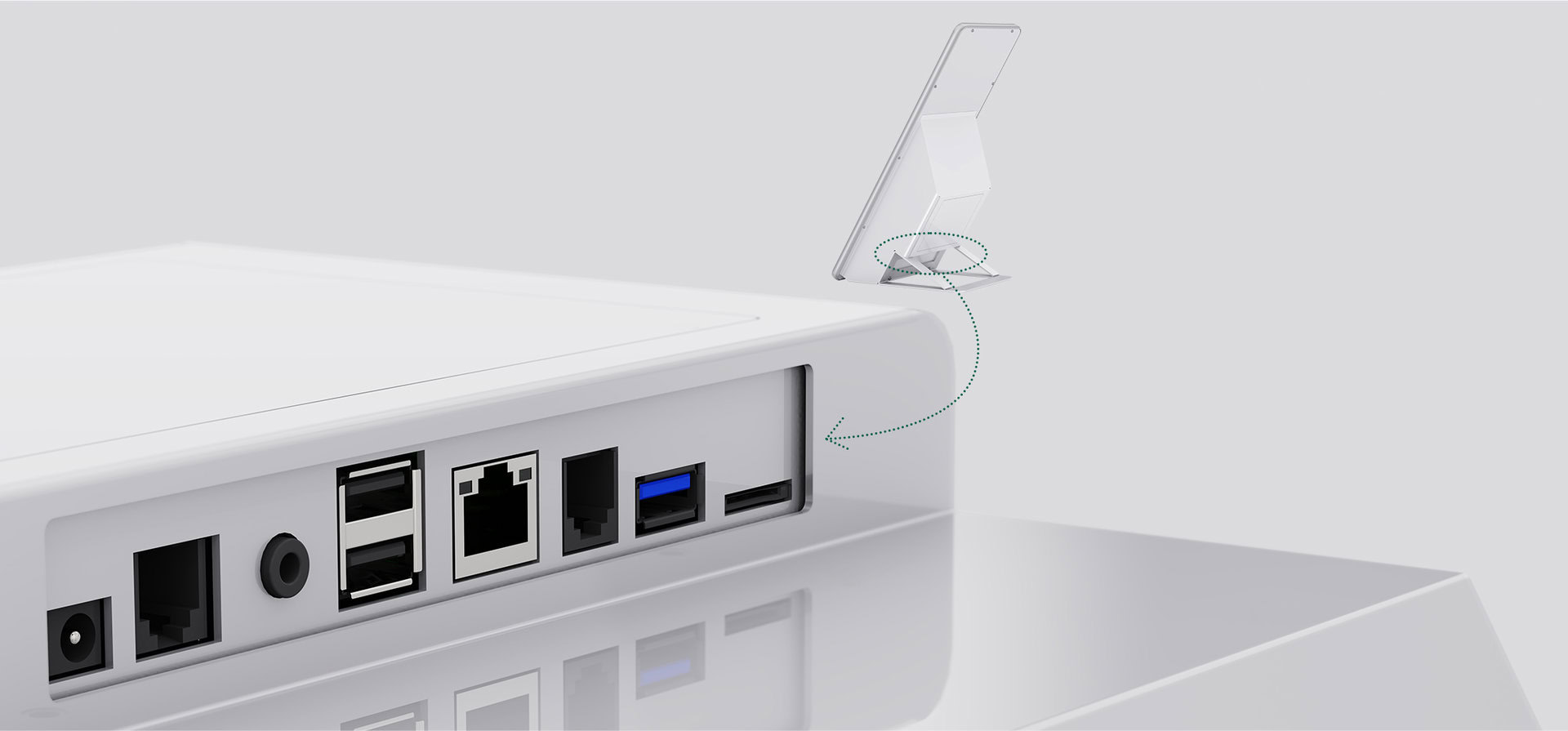

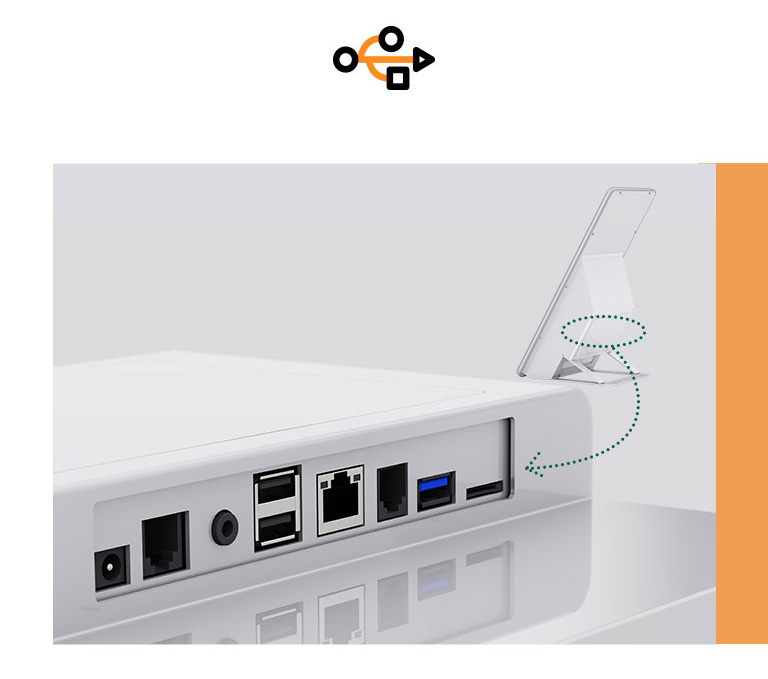

Rich Interfaces, A Tidy Desktop
Rich Interfaces
A Tidy Desktop
Multiple interfaces satisfy various needs of different application scenarios. Hidden line design better organizes wirings.

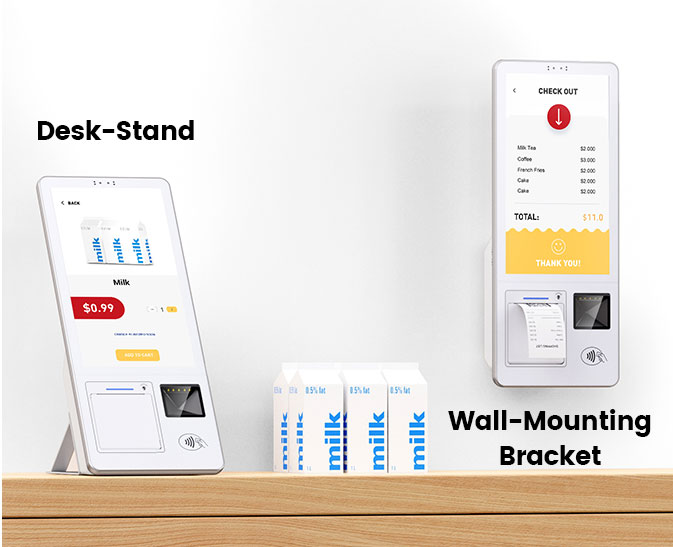

Customized Kiosk, Flexible Installation
Feel free to choose from abundant brackets, meeting needs of different scenes.

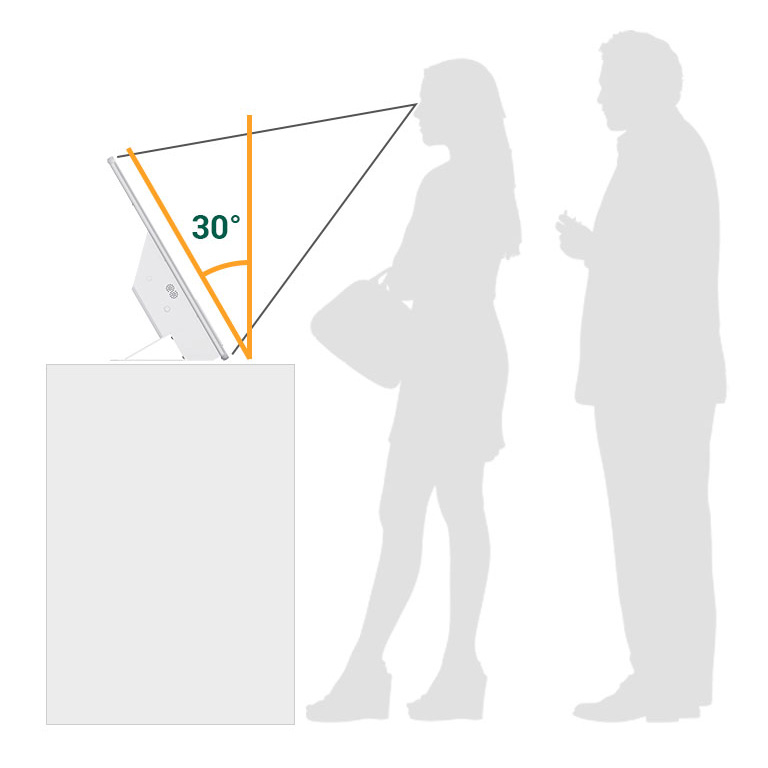

30° Tilt Countertop Bracket Enhanced Ergonomic Comfort
Make self-service checkout and payment services more comfortable for in-store consumers.

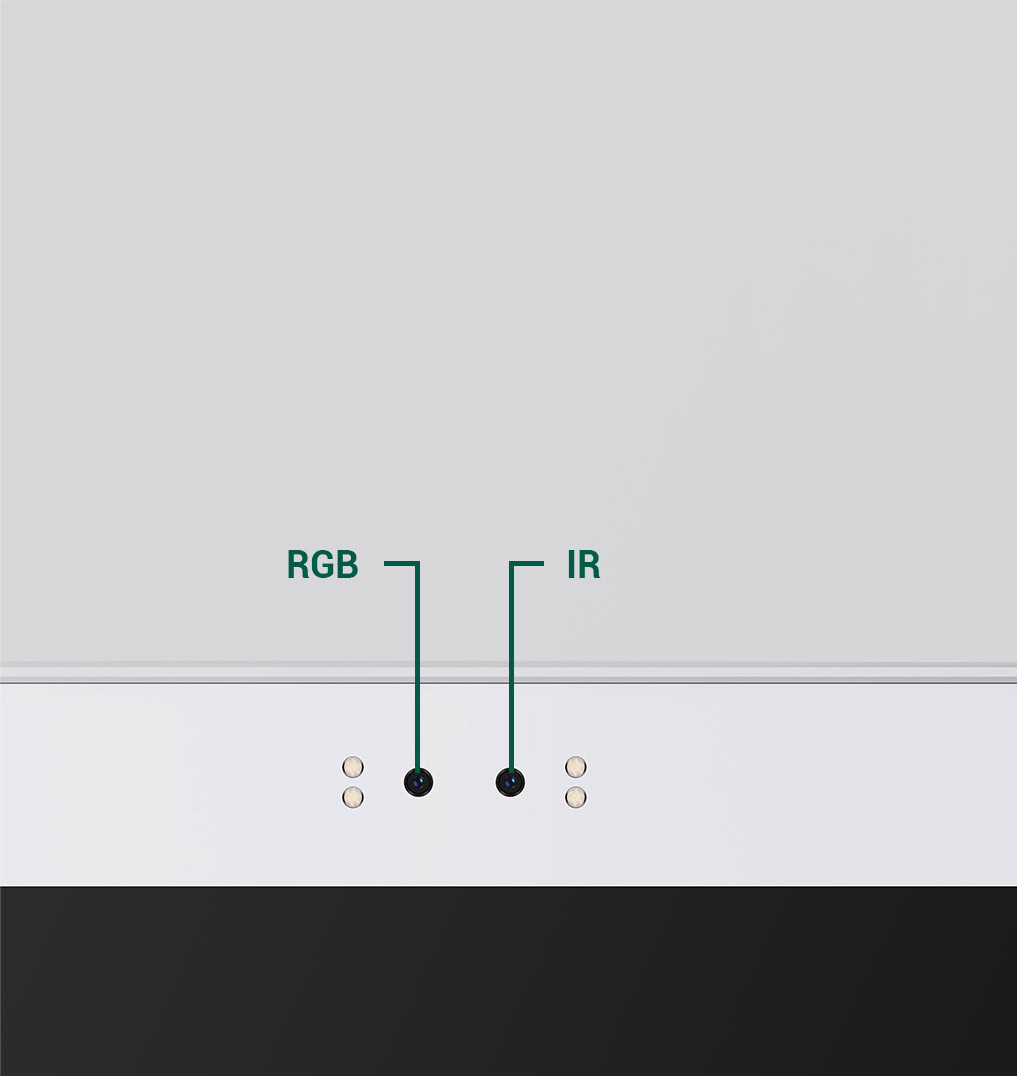

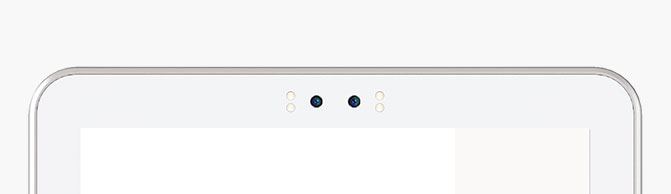

Optional Dual-Lens Camera
30° Tilt Countertop Bracket
Enhanced ergonomic comfort

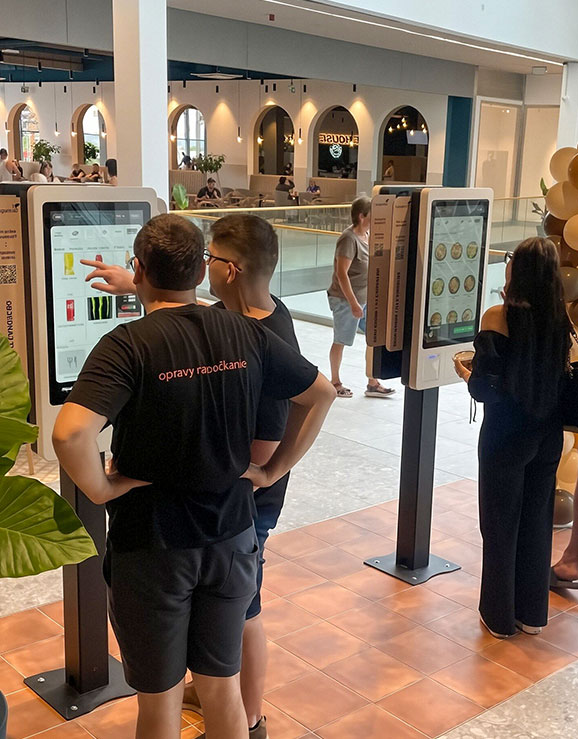

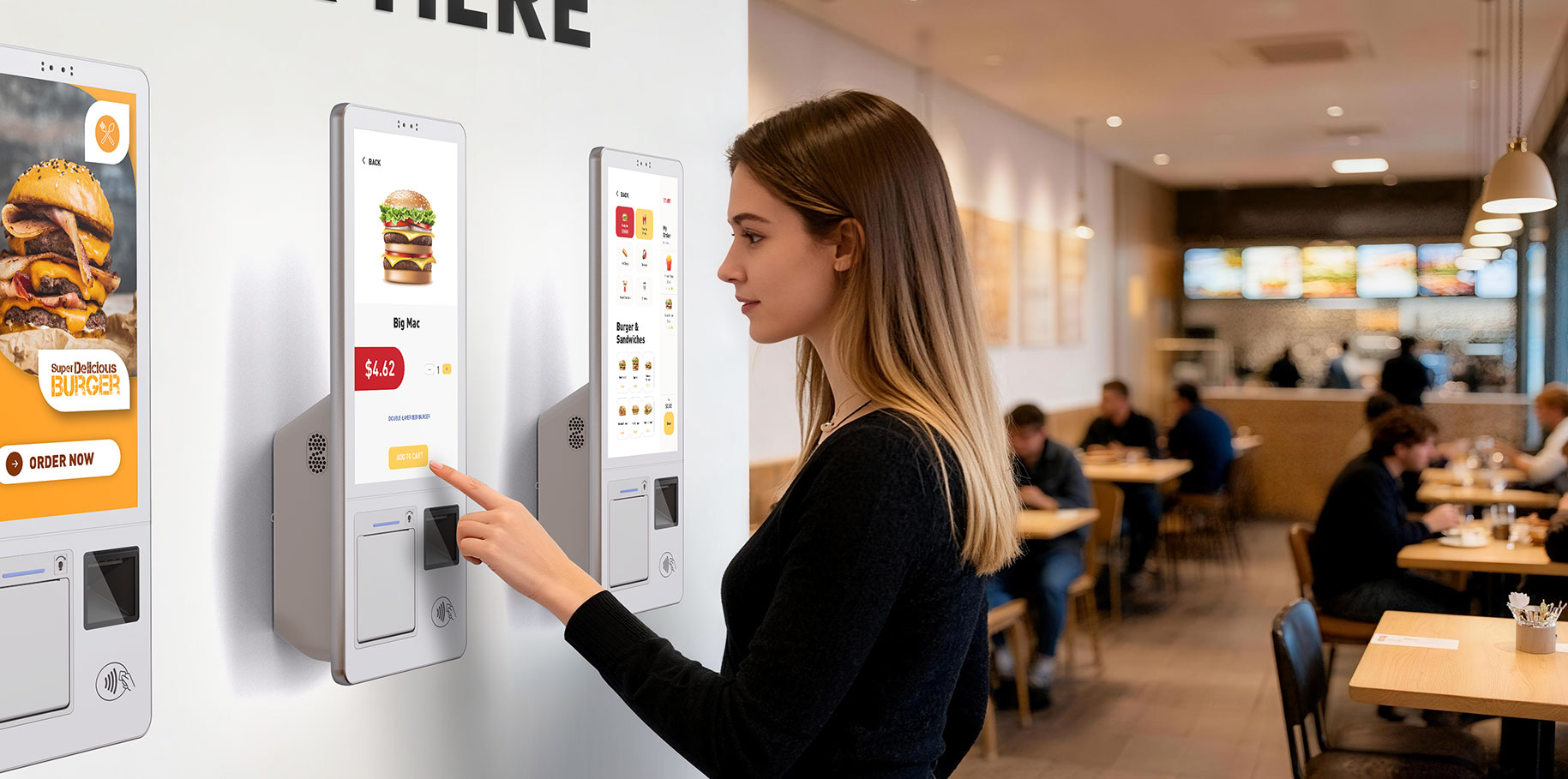

Applications

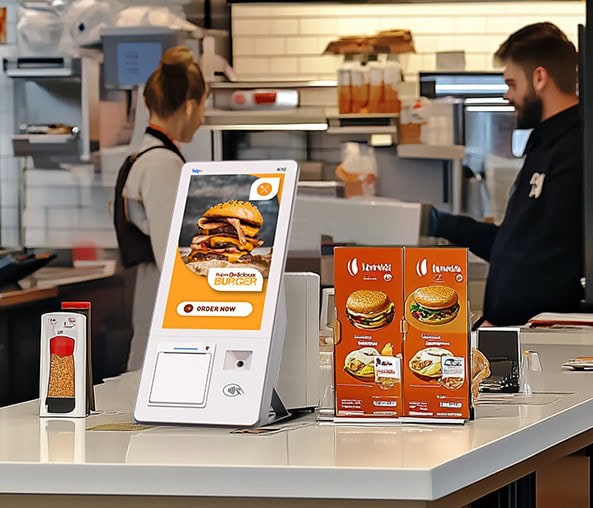

Restaurant/QSR

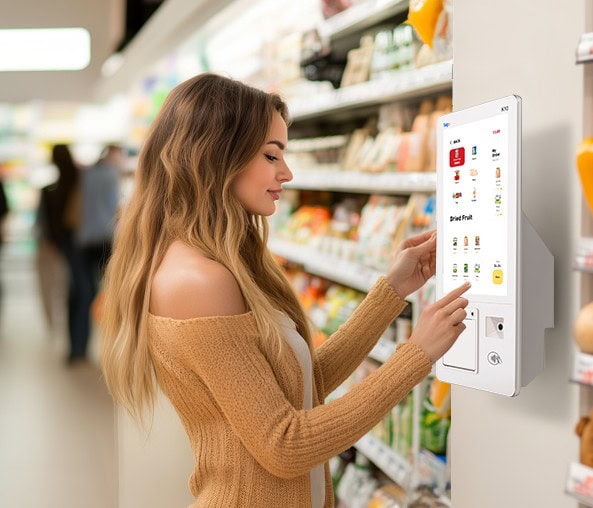

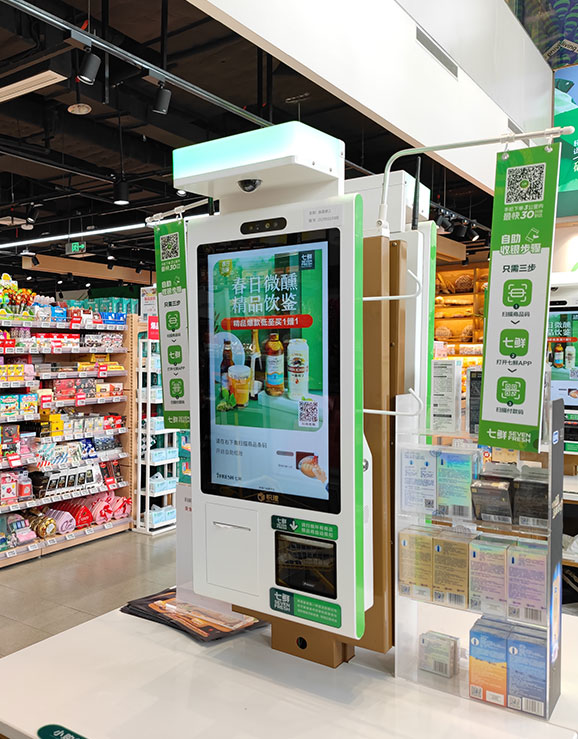

Retail
Hotel
Hospital
Technical Specifications
OS
Telpo OS (Based on Android 13)
Processor
Hexa-Core 1.8GHZ
Memory
4GB RAM, 64GB ROM

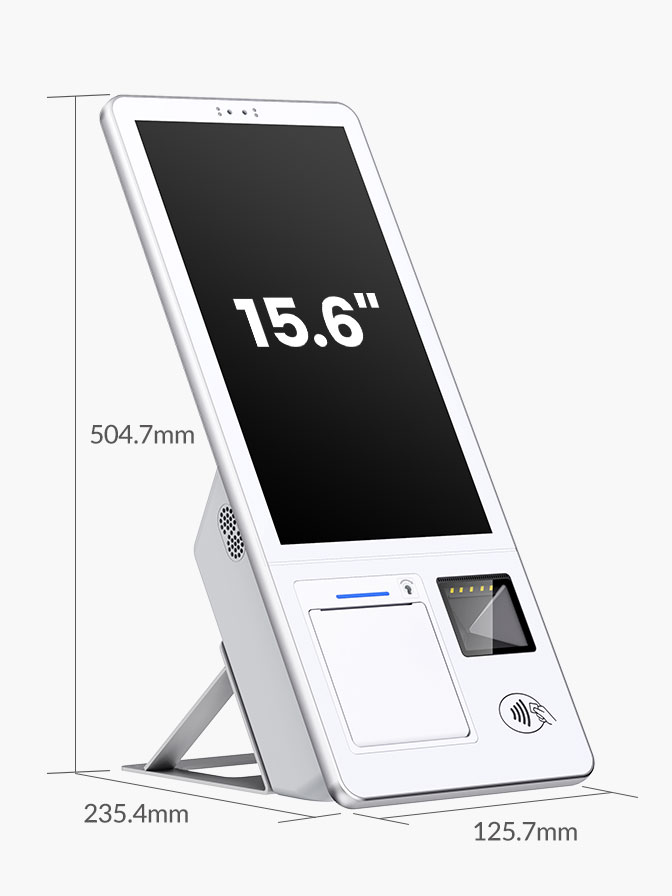

Display
15.6", 1080*1920
Thermal Printer
Paper Width: 80mm, Φ80mm, with auto cutter
Print Speed: 150~220mm/s
Contactless Card Reader (Optional)
ISO14443 Type A/B, Mifare
1D/2D Barcode Scanner
Support
Face Recognition (Optional)
Dual-Lens Camera
Peripheral Ports
1 USB-A 3.0, 2 USB-A 2.0, 1 RJ45, 1 RJ11, 1 RS232, 1 Audio Jack
Audio
Digital Audio Speaker
Communications
Wi-Fi/ Bluetooth/ Ethernet
Weight (kg)
6.3
Dimensions (mm)
575(L)*246 (W)*123(H)
Shipping Box Dimensions (mm)
674(L)*336(W)*218(H)
Stand (Optional)
Desk-Stand

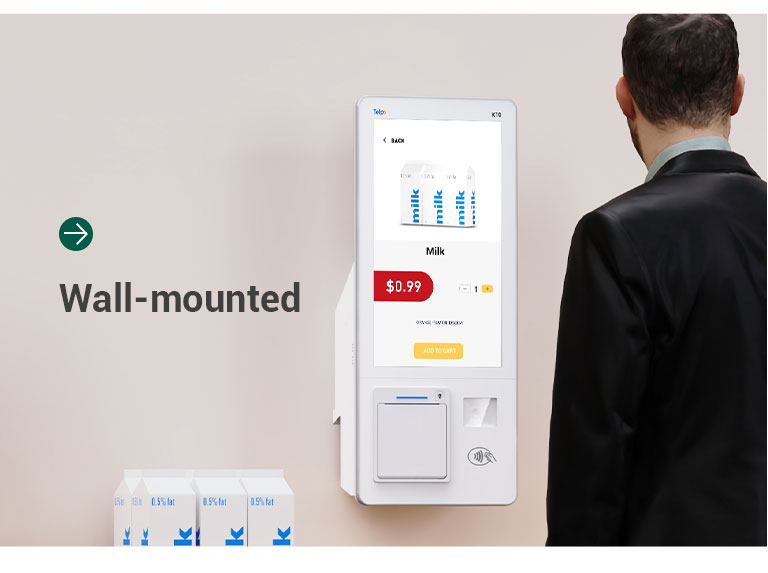

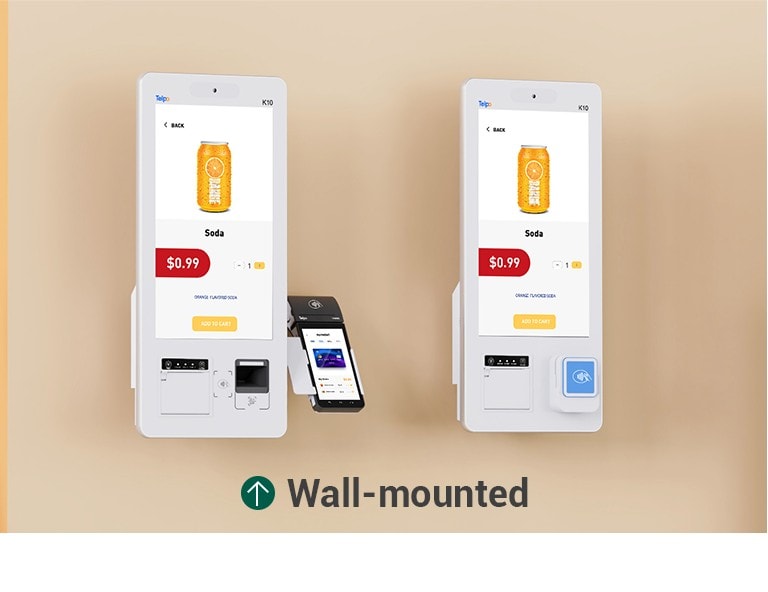

Wall-Mounting Bracket
POS Bracket
Environmental
Operating Temperature: -5℃ ~ 45℃
Storage Temperature: -25℃ ~ 60℃
MDM (Optional)
Mobile Device Management
Power Supply
24V/5A
