Android Mobile POS

M1 Features

Light-weighted: 6-inch touch screen+ 17mm thickness, support 400nit sunlight readable and easy to carry

Quick Print: 58mm high-speed thermal printer with 80mm/s printing speed, support label, receipt, web page, BT and ESC POS printing.

Excellent Performance: Android 11 OS + Qualcomm 2.0Ghz Quad-core processor

Quick Charge: 20W fast charging with an intelligent battery protection

Barcode scanner: Support hard decoding +Telpo self-developed scanning software, quickly recognize 1D/2D barcode

Payment: Mobile payment and QR code payment are available

Telpo M1 is a best in class indoor and outdoor mobile operation solution, it can be used to mobile ordering, receipt printing, food delivery, mobile payment, queue management, loyalty program,etc

Function:

  • Android-01.png
    Android
  • Quad-core-01.png
    QuadCore
  • NFC-01.png
    NFC
  • QR-code-01.png
    QRcode
  • Printer-01.png
    Printer
  • Wi-Fi-01.png
    Wi-Fi
  • Fast Speed-01.png
    Fast Speed
  • LTE-01.png
    LTE
  • Bluetooth-01.png
    BT
Inquiry Now


Telpo M1 android mobile pos 17mm thickness
Android 11 mobile pos machine
Telpo M1 mobile POS terminal with High-speed POS printer

Leading Fast Charge

20W fast charging based on USB-PD protocol.Intelligent battery protection,longer battery life.
mobile pos M1 has 20W fast charging based on USB-PD protocol
Android Mobile POS mahine QR code reader

Tag and Go

The NFC module has access to start loyalty program, reward points, etc.
Mobile Android POS ESIM WIFI

PSAM

2 PSAM card slot, suitable for checking meters(gas/ electric/ water), transportation and mobile law enforcement, etc.
Android mobile POS HD screen
mobile pos machine M1 has eSIM, Wi-Fi 5, BT, 4G,3G

Sunlight Readable Screen

6-inch HD capacitive screen,400nit readable under sunlight and anti-backlight ensures outdoor ordering and operation.
Android mobile POS Application

Sharp "Eyes"

The 5MP sunken camera with fill light improves the scanning speed and accuracy, providing clear photo proof.
Android mobile POS Application
Android mobile POS Application
Telpo M1 Mobile Pos machine thin 17mm
Telpo M1 machine with Android 11 + Qualcomm quad core CPU
Telpo Mobile POS printer machine with 80mm/sec printing speed
Telpo 20W Fast charging provide Mobile POS durable power

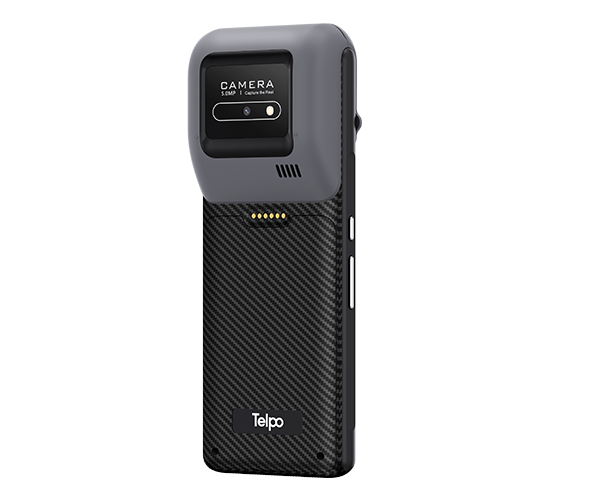

M1 Handheld Rapid barcode scanner and rear camera
M1 Top Contactless Card reader mobile POS
M1 mobile POS with 2 PSAM slot
mobile POS WIFI BLE 5.0

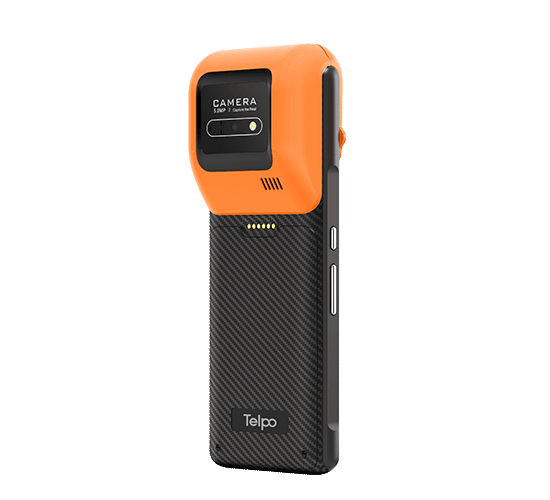

 5.0MP Camera mobile POS

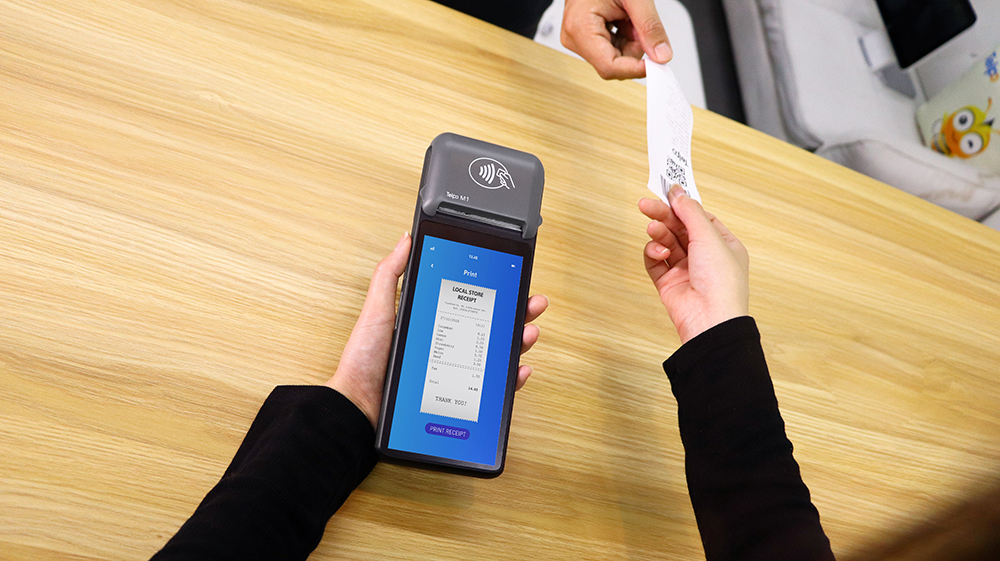

bill printing mobile POS Telpo M1
mobile POS Telpo M1 for item management,mobile payment, queue control

Technical Specifications

Item

Specification

Item

Specification

OS

Android 11

SAM Slots (Optional)

2 SAMs

Processor

Quad-Core 2.0GHz

Communications

LTE/WCDMA/GPRS/WiFi/Bluetooth

Memory

2GB DDR, 16GB eMMC, Ext. TF card slot
2GB DDR, 32GB eMMC (Optional)

Up to 4GB DDR 64GB eMMC (Optional)

GPS (Optional)

Built-in

Display

6-inch, 720*1440

Peripheral Ports

1 Tpye-C(OTG), 1 Audio Jack

Keypad

1 power key, 2 volume keys

Audio

Digital Audio Speaker, Microphone(Optional)

Thermal Printer

Paper width: 58mm, Φ40mm

Power Supply

Fast charging supported

Contactless Card Reader (Optional)

ISO14443 Type A/B, Mifare

Battery

7.6V/2500mAH,Li-ion(Non-removable)

Camera

5M Pixel, auto focus (Barcode software decoding)

QR Code | OCR | 1D/2D barcode imager

Environmental

Operating temperature: -5 ~ 45
Storage temperature: -25
~ 60

2D Barcode Reader(Optional)

Hard Decoding

MDM (Optional)

Mobile Device Management

SIM Slots

2 Nano SIMs
1 Nano SIM(Optional)
eSIM(Optional)

Certification

CE


Download

Telpo-M1-Specifications.pdf

Download
