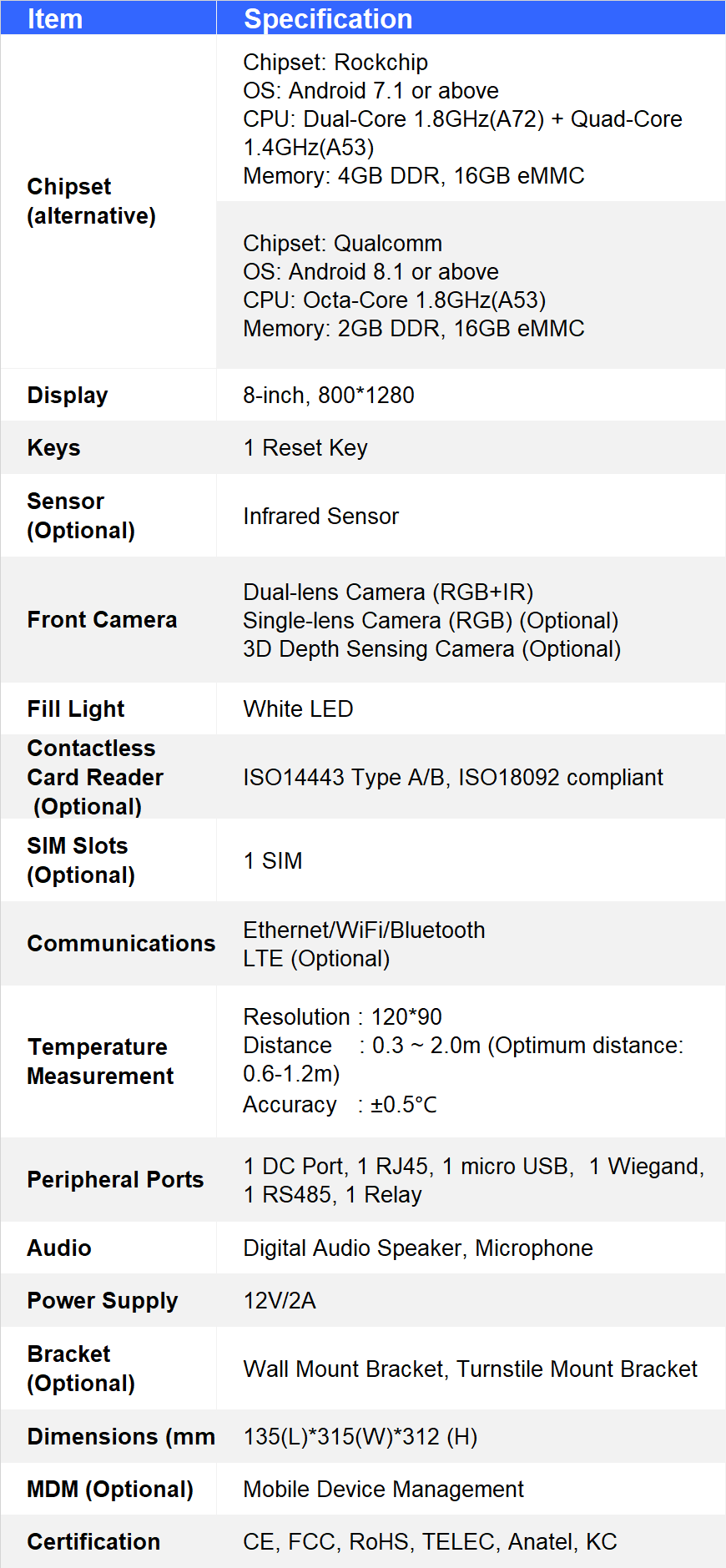

TPS980G

Item

Specification

Item

Specification

Chipset
(alternative)

Chipset: Rockchip
OS: Android 7.1 or above
CPU: Dual-Core 1.8GHz(A72) + Quad-Core 1.4GHz(A53)
Memory: 4GB DDR, 16GB eMMC

Communications

Ethernet/WiFi/Bluetooth
LTE (Optional)

Chipset: Qualcomm
OS: Android 8.1 or above
CPU: Octa-Core 1.8GHz(A53)
Memory: 2GB DDR, 16GB eMMC

Temperature Measurement

Resolution : 120*90
Distance : 0.3 ~ 2.0m (Optimum distance: 0.6-1.2m)
Accuracy : ±0.5℃

Display

8-inch, 800*1280

Peripheral Ports

1 DC Port, 1 RJ45, 1 micro USB, 1 Wiegand, 1 RS485, 1 Relay

Keys

1 Reset Key

Audio

Digital Audio Speaker, Microphone

Sensor (Optional)

Infrared Sensor

Power Supply

12V/2A

Front Camera

Dual-lens Camera (RGB+IR)
Single-lens Camera (RGB) (Optional)
3D Depth Sensing Camera (Optional)

Bracket (Optional)

Wall Mount Bracket, Turnstile Mount Bracket

Fill Light

White LED

Dimensions (mm)

135(L)*315(W)*312 (H)

Contactless Card Reader (Optional)

ISO14443 Type A/B, ISO18092 compliant

MDM (Optional)

Mobile Device Management

SIM Slots (Optional)

1 SIM

Certification

CE, FCC, RoHS, TELEC, Anatel, KC
