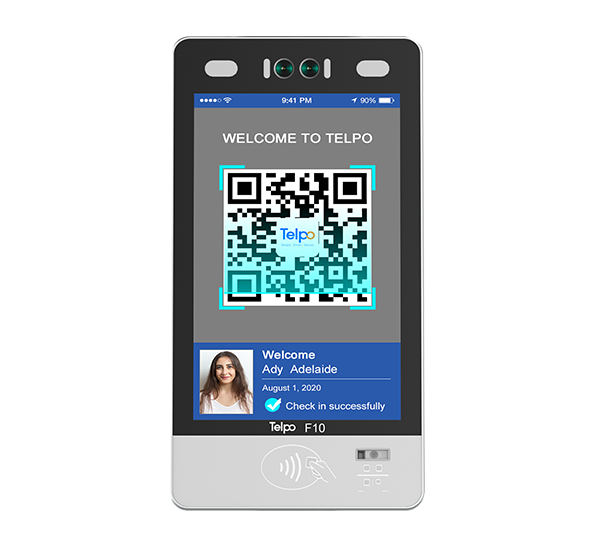

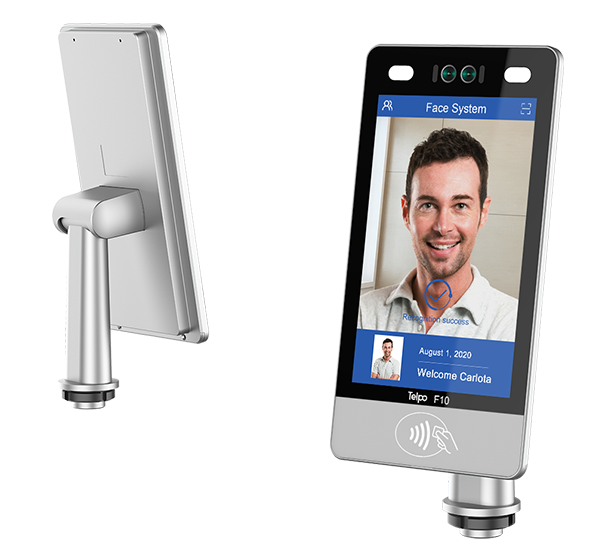

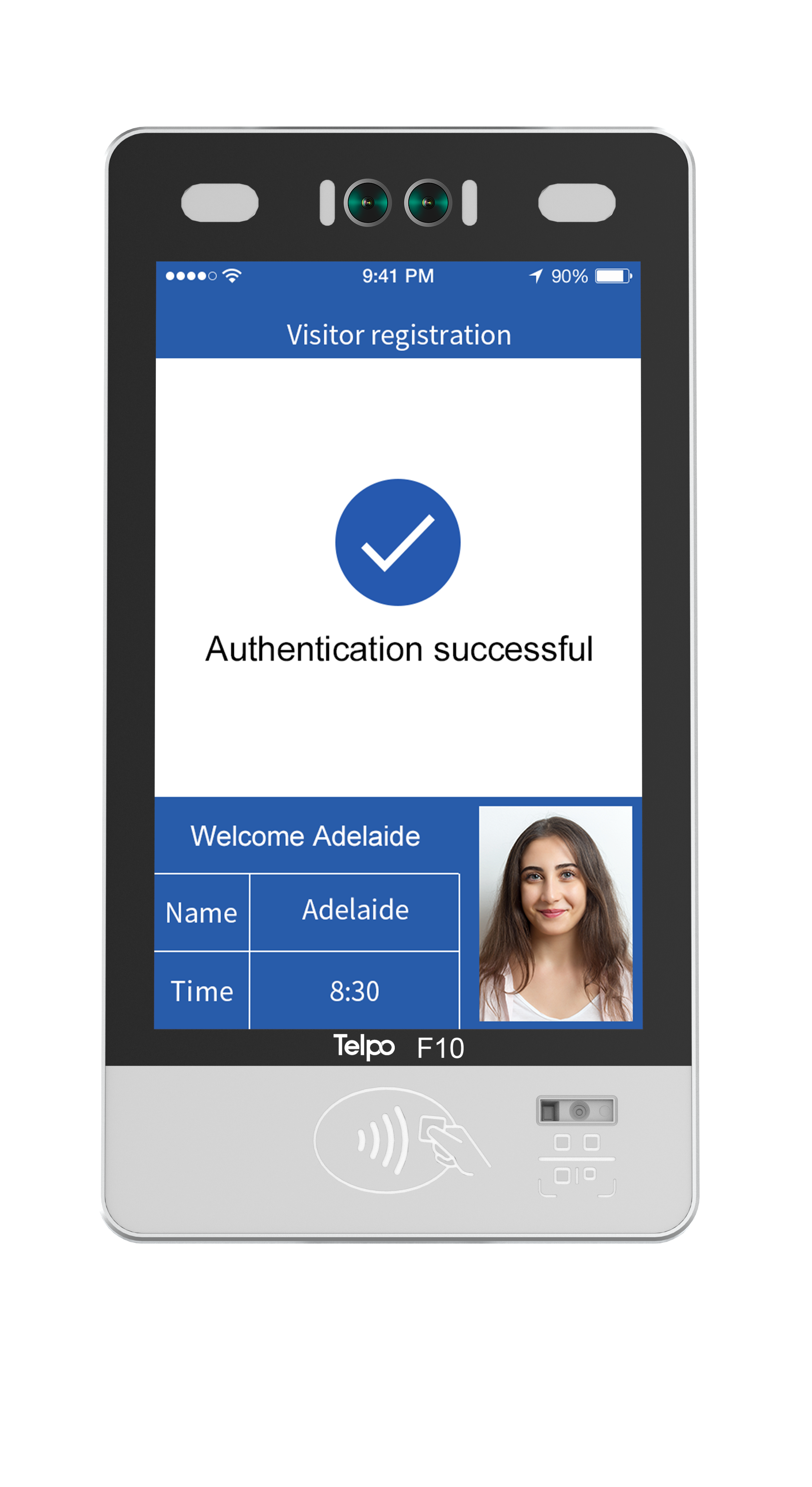

Telpo-F10 10-inch Face Recognition Machine
Telpo-F10 10-inch Face Recognition Machine
Telpo-F10 Face Recognition Machine
Telpo-F10 10-inch Face Recognition Machine
Telpo-F10 10-inch Face Recognition Machine
Telpo-F10 Face Recognition Machine

10-inch Face Recognition

F10 Features

Telpo F10 is the superior face recognition machine with exquisite appearance, featuring face recognition, HID/NFC reader, attendance, access control, and waterproof. With IP66, CE, FCC, RoHS, TELEC, KC certification, it is suitable for airports, banks, office buildings, hotels, retail stores, campuses, communities, and other scenes in various countries.

🔸10 Inch Touch screen, clearer visual display
🔸Adopt Qualcomm SMD450 scheme, Octa-core 1.8GHz CPU
🔸Binocular camera: support liveness detection function, effectively prevent deception of photos, videos, and wax figures
🔸IP66 protection grade product: waterproof, dustproof, and fall-proof
🔸Provide a complete set of solutions, including hardware, software and platform


Function:

  • Android-01.png
    Android
  • 10-inch Screen.png
    10-inch
  • Qualcomm-01.png
    Qualcomm
  • Face-01.png
    Face
  • NFC-01.png
    NFC
  • Mask Detection-01.png
    Wear Mask
  • Face Library-01.png
    Face Library
  • Voice Prompt-01.png
    Voice Prompt
  • Telpo cloud-01.png
    Telpo Cloud
  • Rich Interfaces-01.png
    Rich Ports
  • Fast Speed-01.png
    Fast Speed
  • IP66 Waterproof-01.png
    IP66
Inquiry Now
biometric access control biometric access control biometric access control biometric access control biometric access control biometric access control biometric access control biometric access control biometric access control biometric access control />
</div>
<div style=
10-inch screen Face Recognition Terminal for access control and attendance AI Face Detection Recognition Terminal for access control and attendance Real time Face Detection Recognition alige and intelligent Vioce Prompt Face Detection Recognition device Outdoor IP66 liquid proof Face Detection Recognition device Third Party Biometric Face Recognition system device Standing alone,Wall-hanging, Desk top Face Recognition machine Sizes of Face Recognition machine Airport Face Recognition machine Application School Hotel Face Recognition machine Application

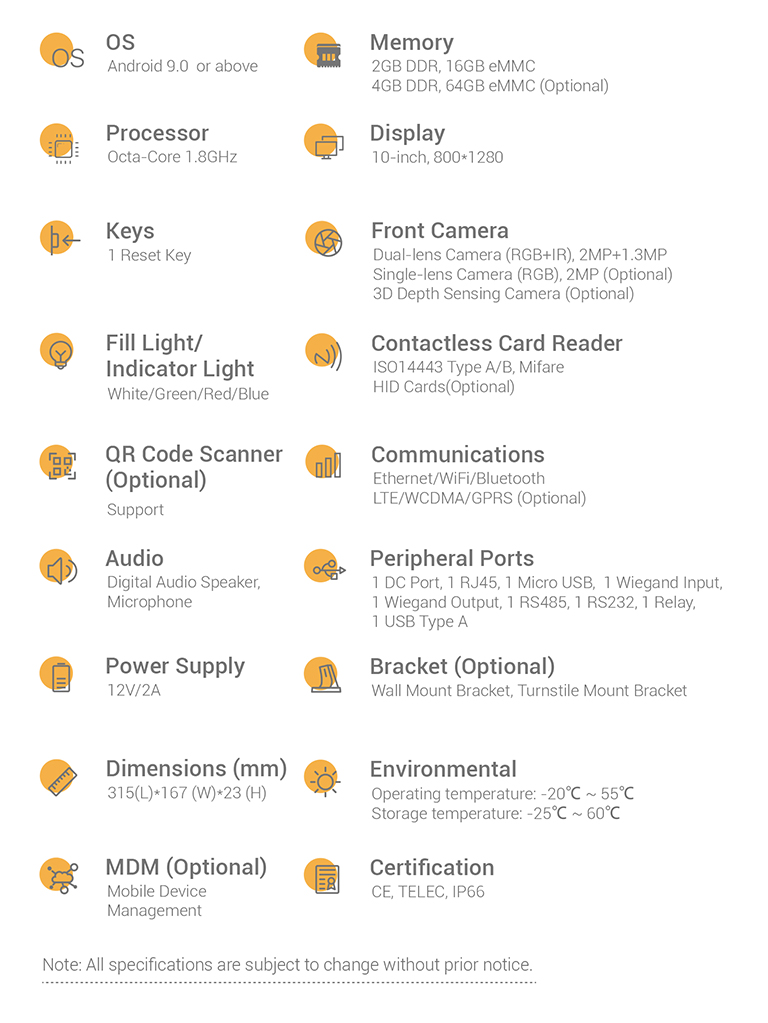

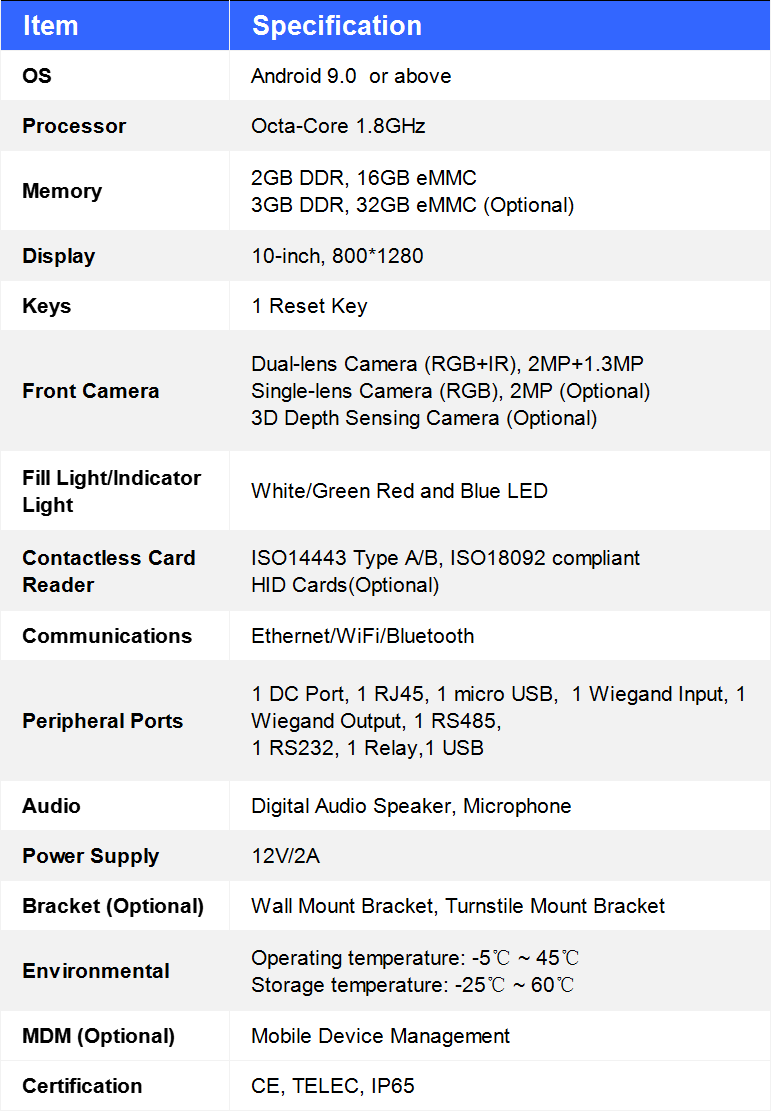

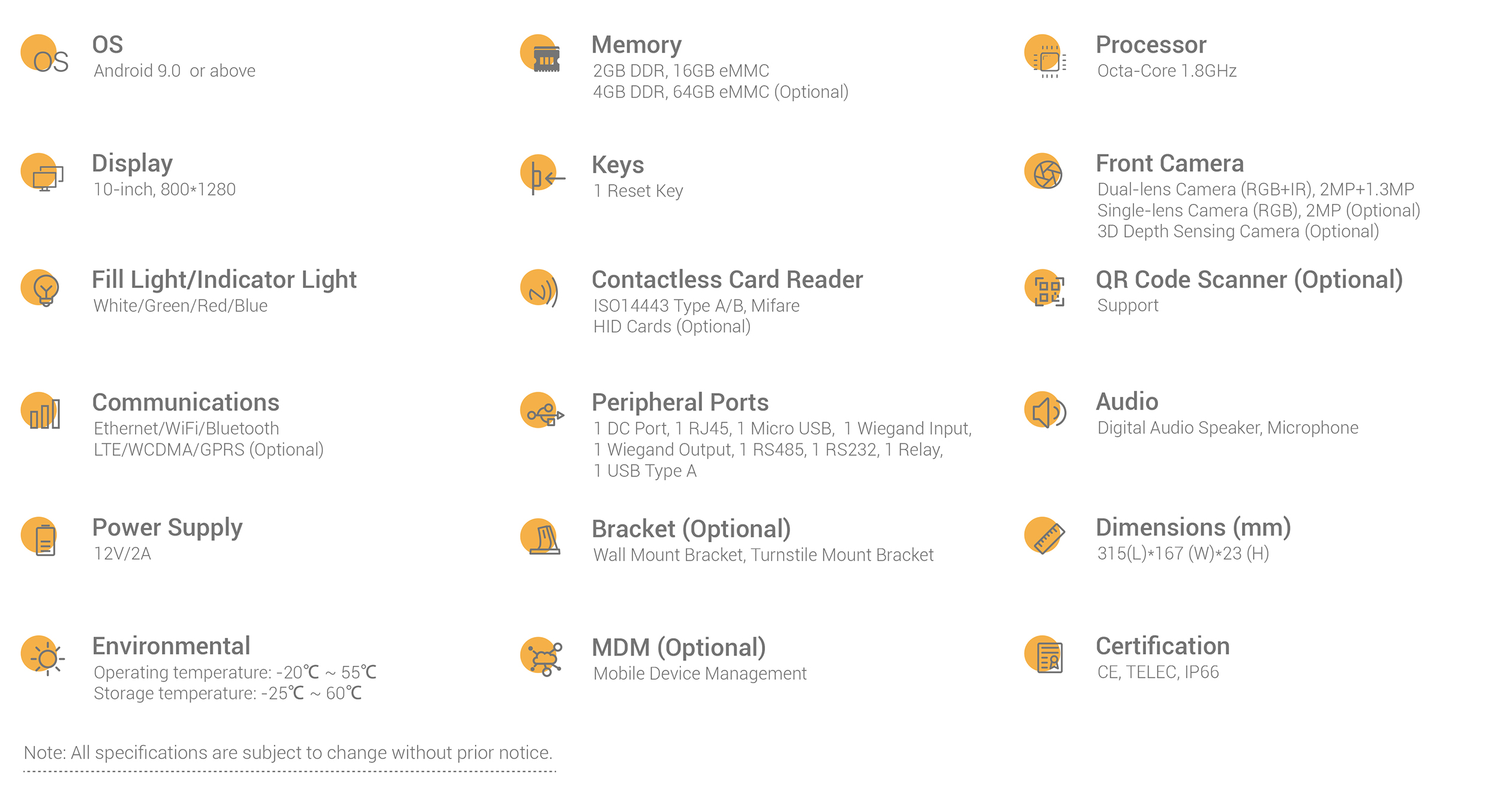

Technical Specifications

Item

Specification

Item

Specification

OS

Android 9.0  or above

HID Cards

(Optional)

Processor

Octa-Core 1.8GHz

Communications

Ethernet/WiFi/Bluetooth

Memory

2GB DDR, 16GB eMMC
3GB DDR, 32GB eMMC (Optional)

Peripheral Ports

1 DC Port, 1 RJ45, 1 micro USB,  1 Wiegand Input, 1 Wiegand Output, 1 RS485,
1 RS232, 1 Relay,1 USB TypeA

Display

10-inch, 800*1280

Audio

Digital Audio Speaker, Microphone

Keys

1 Reset Key

Power Supply

12V/2A

Front Camera

Dual-lens Camera (RGB+IR), 2MP+1.3MP
Single-lens Camera (RGB), 2MP (Optional)
3D Depth Sensing Camera (Optional)

Bracket (Optional)

Wall Mount Bracket, Turnstile Mount Bracket

Fill Light/Indicator Light

White/Green Red and Blue LED

MDM (Optional)

Mobile Device Management

Contactless Card Reader

ISO14443 Type A/B, ISO18092 compliant

Certification

CE, TELEC, IP65


Download

Telpo-F10-Specification.pdf
