Robust Aluminum Alloy Body
Adopt solid aluminum alloy material, vandal resistant and
tamper-proof
design to create excellent heat dissipation effect.
Superb AI Vision Processor
The NPU neural network vision processor RV1109 and Linux4.19 OS empower
stronger computing power, powerful image processing and display output capability,
efficiently assist accurate operation of the face recognition system.
Chipset: RV1109
OS: Linux 4.19
CPU 1.5Ghz
NPU1.2TOPS
Linux OS & Android OS Alternative
Linux OS
Chipset: RV1109
CPU: Dual-Core (Cortex-A7), 1.5GHz
NPU: 1.2Tops
Memory: Up to 2GB DDR, 16GB eMMC
Android OS
Chipset: RK3399
OS: Android 7.1 or above
CPU: Dual-Core 1.8GHz + Quad-Core 1.4GHz
Memory: 2GB DDR, 16GB eMMC

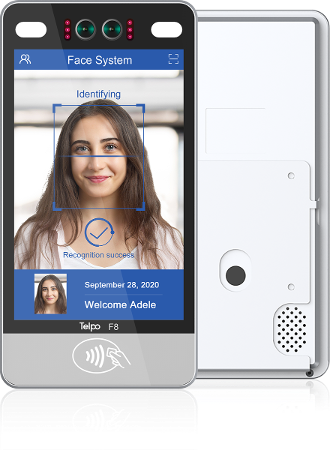

IR+VL Face Recognition
Equipped with binocular camera to achieve infrared and visual light face recognition,highly matched is suitable for everyone.
Changeable light condition
Adapt to facial changes
Super anti-fake performance
Strong
frontlight
Strong
backlight
Insufficient
light
Wear glasses
Wear hat
Make up
Photos
Video
3D mask
Suitable for Indoor and Outdoor Scene
In line with international IEC waterproof and dustproof IP65
standard, enabling strong waterproof ability
and stable operation in outdoor.
Temperature Screening
When face recognition is used in combination with a thermal camera,
Telpo F8 can accurately identify people with elevated skin temperature.

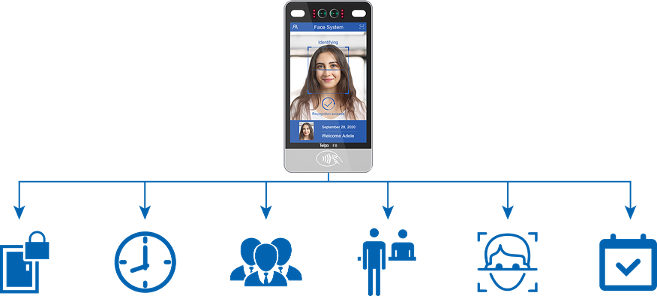

Multi-mode Access Identification
Support multiple access modes include QR code, face recognition, NFC card, which satisfy smart visitor
management, visitor authorization access, and employee attendance and so on development demand.
Face Recognition
NFC Card Reader
Intercom

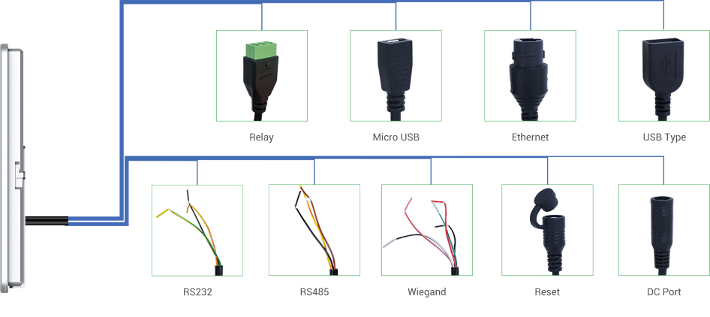

Flexible Installation
Rich brackets and abundant interfaces able to connect peripheral devices and expand applications,
making installation simple and flexible.
Intelligent Face Recognition System
Telpo can provide self-developed all in one security access control and attendance solution (online and offline).
Middleware and SDK development can be chose to quickly connect existing system and shorten the development cycle.
We are committed to create smart security and smart IoT systems in various scenarios such as airports, offices, and banks,etc.
Technical Specifications
OS
Android 7.1 or 11
Memory
4GB RAM, 16GB ROM
4GB RAM, 64GB ROM (Optional)
Processor
Hexa-Core 1.8GHz
Display
8", 800*1280
Fill Light
Fill Light
Front Camera
Dual-Lens Camera (RGB+IR), 2MP+1.3MP
Contactless Card Reader (Optional)
ISO14443 Type A/B, Mifare
Communications
Ethernet/ Wi-Fi/ Bluetooth
Peripheral Ports
1 DC Port, 1 RJ45, 1 Micro USB,
1 Wiegand Input,
1 Wiegand Output,
1 RS485, 1 RS232, 1 Relay,
1 USB Type A, 1 Reset
Audio
Digital Audio Speaker, Microphone
Power Supply
12V/2A
Dimensions (mm)
249 (L)*127 (W)*23 (H)
Bracket (Optional)
Wall Mount Bracket, Turnstile Mount Bracket
Environmental
Operating Temperature: -20℃ ~ 55℃
Storage Temperature: -25℃ ~ 60℃
MDM (Optional)
Mobile Device Management
Certification
CE, KC, TELEC, JATE, IP65
