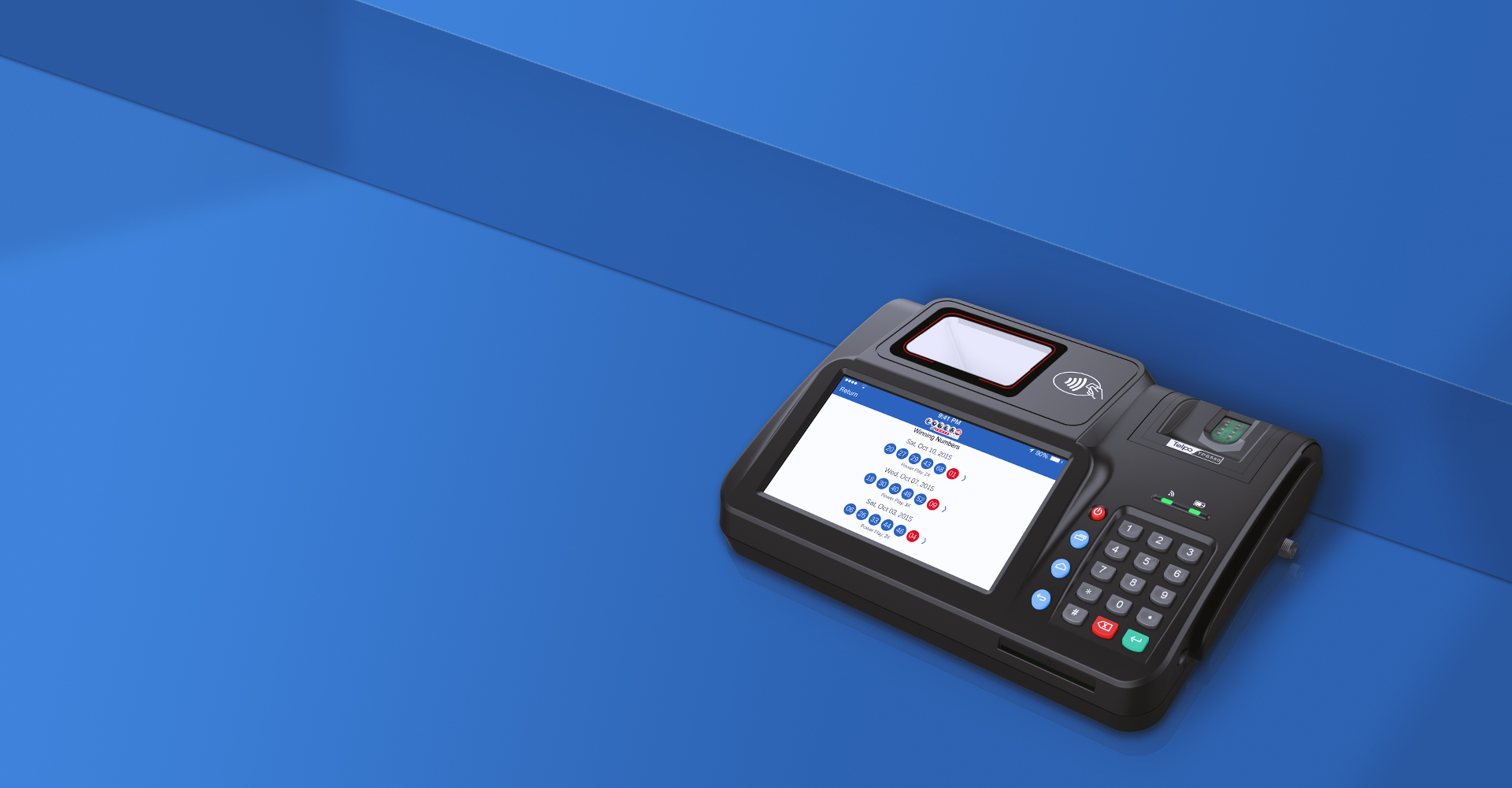

Desktop E-ticket POS

TPS550 Features

· Android system, Octa-core processor, with large memory;
· Multiple recognition: QR-code, NFC card, fingerprint scanner, etc;
· Built-in 58mm width thermal printer with printing speed 60mm/sec;
· Large battery life eases data loss due to sudden power failure;
· Humanized design (hidden data line interface, curved body design).

Function:

  • Android-01.png
    Android
  • Octa-Core-01.png
    Octa-Core
  • NFC-2-01.png
    NFC-2
  • QR-code-01.png
    QRcode
  • Printer-01.png
    Printer
  • Fingerprint-01.png
    Fingerprint
  • 4G-01.png
    4G
  • Fiscal Register-01.png
    Fiscal Register
  • Big Battery-01.png
    Big Battery
Inquiry Now

Dual-Camera with Android 4.4

Dual 5M pixels cameras,one for barcode/ID card reading,one for certificate photo

Dual-Camera with Android 4.4

Dual 5M pixels cameras,one for barcode/ID card reading,one for certificate photo

High Quality Antenna

Ensure stable information upload and network supply

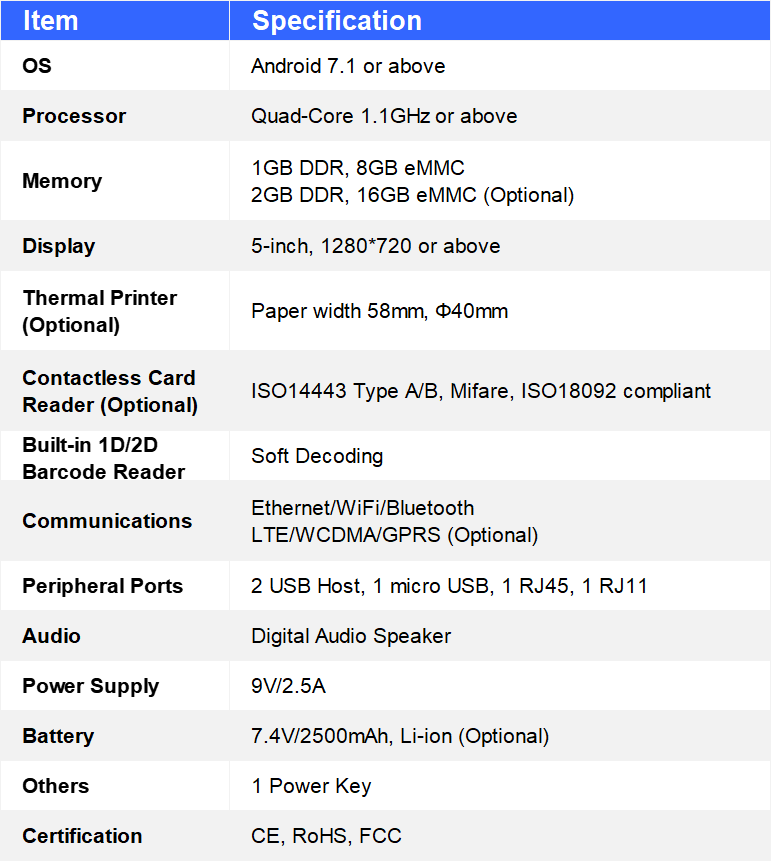

Technical Specifications

Item

Specification

Item

Specification

OS

Android 4.4 or above

Camera

5M Pixel, fixed focus (Barcode softdecoding)
Front camera: 5M Pixel (Optional)

Processor

Dual-Core 1.2GHz or above

SAM Slots (Optional)

2 SAM Slots

Memory

1GB DDR, 8GB eMMC, Ext. TF card slot

SIM Slots

1 SIM
2 SIMs (Optional)

Display

7-inch, 800*480 or above

Communications

Ethernet/WiFi/Bluetooth
LTE/WCDMA/GPRS (Optional)
GPS (Optional)

Keypad

13 alphanumeric keys, 6 function keys

Peripheral Ports

2 USB Host, 1 mini USB ,1 RJ45
1 RJ11, 1 PS2, 1DB9 (Optional)

LED Lights

2

Audio

Digital Audio Speaker

Thermal Printer

Paper width: 58mm, Φ50mm

Power Supply

12V/2A

Magnetic Card Reader (Optional)

Track 1/2/3, bi-directional swipe, ISO7810, ISO7811, ISO7812

Battery

7.4V/2500mAh, Li-ion
7.4V/5000mAh, Li-ion (Optional)
7.4V/10000mAh, Li-ion (Optional)
7.4V/20000mAH, Li-ion (Optional)

Smart Card Reader (Optional)

ISO7816

Dimensions (mm)

290 (L)*219 (W)*85 (H)

Contactless Card Reader (Optional)

ISO14443 Type A/B, Mifare, ISO18092 compliant
Felica(Optional)

Environmental

Operating temperature: -5 ~ 45
Storage temperature: -25 ~ 60

Fingerprint Scanner (Optional)

Support

MDM (Optional)

Mobile Device Management



Download

Telpo-TPS550-Specifications.pdf

Download
