HDMI-in and HDMI-out for computer sharing and TV projection. 1080p Wireless Screen sharing for meeting application. Android OS supports customized booting up and powering off logo. Supports main stream and sub stream. 5MP rotatable camera for video call.
|

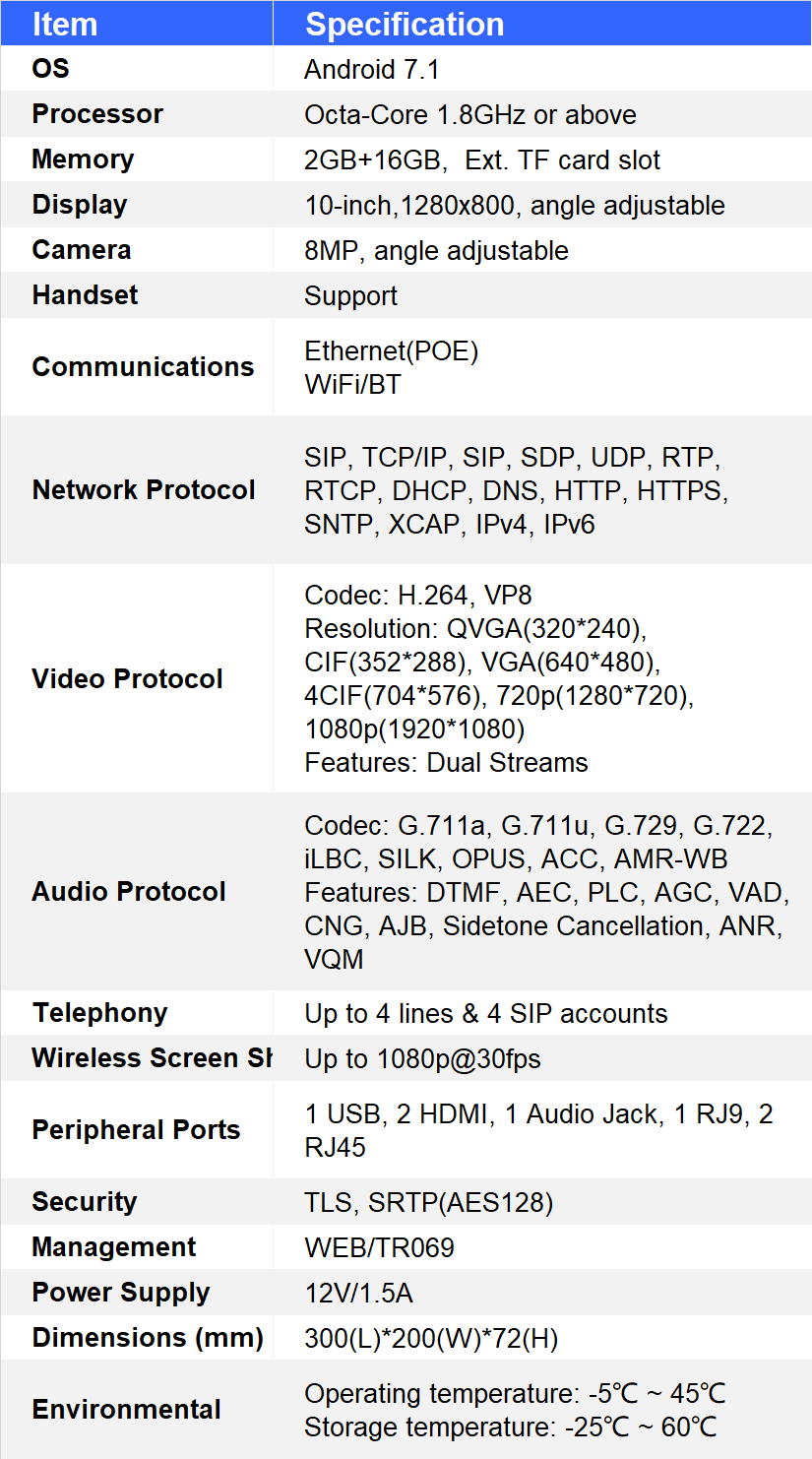

Item |
Specification |
Item |
Specification |
|
|
OS |
Android 7.1 |
Audio Protocol |
Codec: G.711a, G.711u, G.729, G.722, iLBC, SILK, OPUS, ACC, AMR-WB Features: DTMF, AEC, PLC, AGC, VAD, CNG, AJB, Sidetone Cancellation, ANR, VQM |
|
|
Processor |
Octa-Core 1.8GHz or above |
Telephony |
Up to 4 lines & 4 SIP accounts |
|
|
Memory |
2GB+16GB, Ext. TF card slot |
Wireless Screen Sharing |
|
|
|
Display |
10-inch,1280x800, angle adjustable |
Peripheral Ports |
1 USB, 2 HDMI, 1 Audio Jack, 1 RJ9, 2 RJ45 |
|
|
Camera |
8MP, angle adjustable |
Security |
|
|
|
Handset |
Support |
Management |
WEB/TR069 |
|
|
Communications |
Ethernet(POE) WiFi/BT |
Power Supply |
12V/1.5A |
|
|
Network Protocol |
SIP, TCP/IP, SIP, SDP, UDP, RTP, RTCP, DHCP, DNS, HTTP, HTTPS, SNTP, XCAP, IPv4, IPv6 |
Dimensions (mm) |
300(L)*200(W)*72(H) |
|
|
Video Protocol |
Codec: H.264, VP8 Resolution: QVGA(320*240), CIF(352*288), VGA(640*480), 4CIF(704*576), 720p(1280*720), 1080p(1920*1080) Features: Dual Streams |
Environmental |
Operating temperature: -5℃ ~ 45℃ Storage temperature: -25℃ ~ 60℃ |
